Extensive Collection of Industrial Graphics for Wonderware
Symbol Factory ArchestrA Key Features:
- Scalable - Symbols are vector based and scale independent of screen resolution. The symbols leverage the vector graphics capabilities of the ArchestrA Symbol Editor.
- Animatable - Every part of the symbol is available for connecting your custom properties and animations to achieve just the look you want.

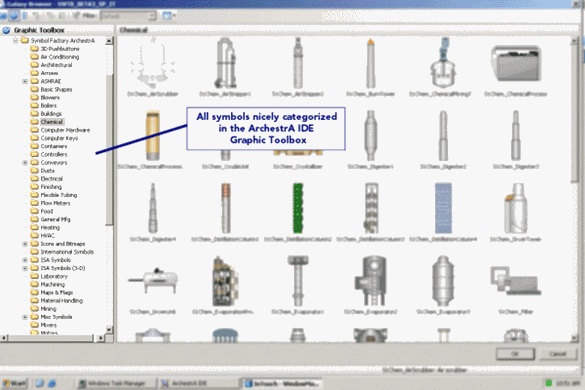

- Centrally managed in your ArchestrA IDE Graphics Toolbox and can be deployed throughout your galaxy.
- Deployable - Make a change in the galaxy repository and all instances of the Symbol Factory ArchestrA symbols are updated in your applications.
- Embeddable - Embed any Symbol Factory ArchestrA symbol into your System Platform Application Objects using System Platform 3.0 or higher

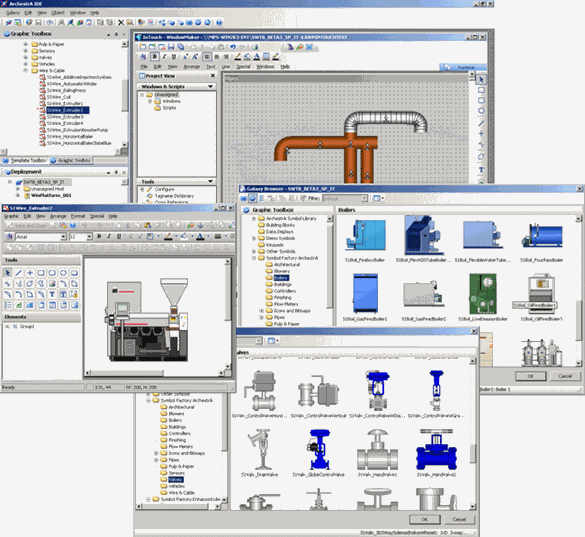

Over 60 Categories of Graphics for Common Industries and Equipment
In addition to common industrial equipment, Symbol Factory ArchestrA includes vertical market categories for Pulp & Paper, Chemicals, Building Automation, Water & WasteWater, Mining, Finishing, and more all organized in easy to browse groups. This is not office grade clip art. These ArchestrA symbols were built with manufacturing automation in mind.

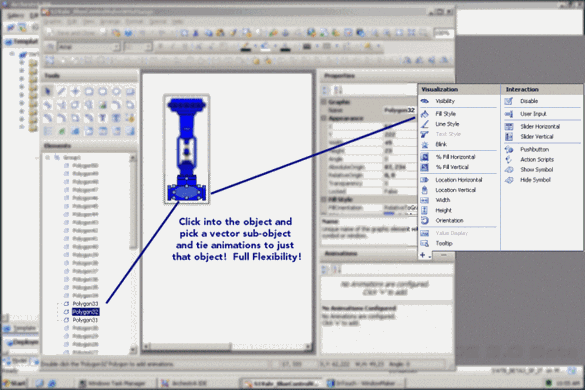

Fully Configurable, Flexible Animations
Every part of the symbol is available for connecting your custom properties and animations to achieve just the look you want and embed any Symbol Factory ArchestrA symbol into your System Platform Application Objects using System Platform 3.0 or higher.
Specifications
Type
Software
Optimized Scenario
Ideal for situations where the Wonderware user needs professional quality industrial graphics without having to create them.
Available on
PC
Languages
English
System Requirements
Windows 10
Windows 8
Windows 8.1
Windows Server 2008
Windows Server 2012
Windows Server 2016
Windows Operating System
Software Toolbox
Since 1996 we have been the leading provider of 3rd party component software products for the automation industry. We have customers in over 100 countries and on 7 continents.
